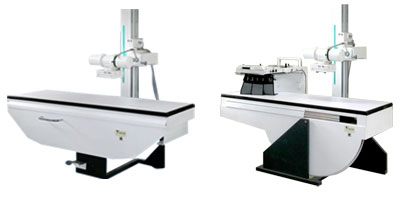

Vision 100 X-Ray machine Technical Specifications please

Technical Specification As per information provided by the manufacturer

• Generator Rating

Radiography
100 mA at 100 kVp

Fluoroscopy
5 mA at 100 kVp

• Tube Current

Radiography
25 mA, 50 mA, 100 mA

• Tube Voltage

Radiography
45 kVp – 100 kVp

• Timer

Radiography
0.02 sec – 10 second Solid state

• Power
8KW

• Power Supply

Single phase
230 V, 50 / 60 Hz, 10KVA 0.6 Ohms line resistance *On a weak power supply Line, it is recommended to have 3-phase 415 V, 0.6 Ohms resistance, 10KVA line

• Self-contained Tube Head Specification

Rectification
Full-wave, rectified

• X-Ray tube
Stationary Anode, 40 KHU, 2.8mm x 2.8mmFocal Spot

• Overall Dimensions

1200mm
Length

650mm
Width

1880mm
Height

• Movements
Up / Down Fully Counter-balanced

Vertical Travel
1300mm

IN / OUT Travel
400mm

Angular Travel
+ 80 deg

Tube Angulation
Full rotation
